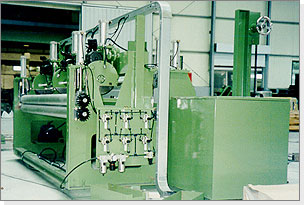

| Cut and Winder
|
| |
 |
The cut and winder seeks
to improve production efficiency and
product quality. The separate driving
systems for the blades and for the motor
ensure better quality and convenience
for the user. |
|
| |
|
|
|
| |
| SPEC
¡¬ TYPE |
DW
- E - W |

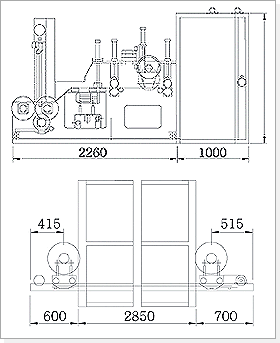

| M/C
Dimensions |
Height |
1775
mm |
| Length |
3505
mm |
| Width |
4150
mm |
| No |
Name of Roller |
Quantity |
Width of Roller |
Motor |
| 1 |
Winder |
2 |
317 ¡¿ 2400 |
Gread 2HP (30:1) |
| 2 |
(L)Cutting |
5 |
300 ¡¿ 4t |
4P 0.5 HP |
| 3 |
(W)Cutting |
1 |
350 ¡¿ 9t |
4P 2 HP |
| 1 |
|
Gread 2HP (10:1) |
| 4 |
Air Cylinder |
6 |
B50 £ S200 |
|
| 2 |
Air Cylinder |
5 |
B63 £ S150 |
|
|
| ¡Ø The numbers mentioned above
are rough measurements and subject to change according
to users' requirements, raw materials, and other working
conditions. |
| |
| |
|
| |
|
By operating the motor and blades
independently, the cut and winder strengthens cutting
effectiveness. |
|
| |
